Product Introduction

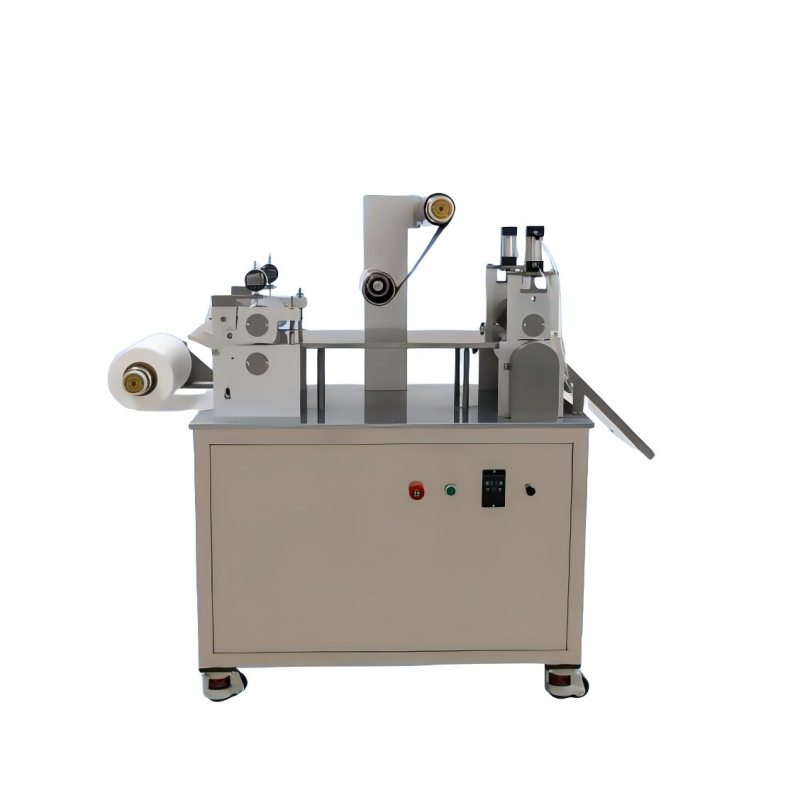

This computerized hydrogel coating tester is designed to replicate industrial production processes, with parameters aligned to actual manufacturing requirements. It employs an inclined feeding and dual-roller squeeze coating method, achieving satisfactory coating results even with high-viscosity materials. Coating thickness is adjusted via a gap mechanism and displayed by both scale and digital readout, with a gap display accuracy of 0.001 mm. The machine is equipped with two unwinding rollers and manual spring-type tension control, while rewinding is automatic, enabling a continuous process of substrate feeding, coating, laminating, and rewinding. The material hopper is an inclined 304 stainless steel structure, the discharge plate is a flat 304 stainless steel structure, and the housing is also 304 stainless steel, fully compliant with medical standards. With overall dimensions of 1050×430×1550 mm and a 220V/50Hz, 500W power supply, the machine is compact and precise. Even small amounts of material can be used for sampling, significantly reducing material waste during the R&D stage.

Key Features
Simulates Production Process：Fully replicates large-scale production equipment with parameters aligned to actual manufacturing processes, so sampling results can directly guide scale-up.
Inclined Squeeze Coating：Adopts inclined feeding and dual-roller squeeze coating, delivering satisfactory results even for high-viscosity materials with simple operation.
Precisely Adjustable Thickness：Coating thickness adjustable from 0.5 to 3.50 mm, with gap adjustment, scale, and digital display providing 0.001 mm display accuracy.
Integrated Laminating：Simultaneously laminates the substrate with an anti-adhesive layer during coating; an optional die-cutting function cuts specimens to size.
Medical-Grade Stainless Steel Body：Housing, hopper, and discharge plate are all made of 304 stainless steel, meeting medical standards with corrosion resistance and easy cleaning.
Dual Unwinding & Automatic Rewinding：Equipped with two unwinding rollers and manual spring-type tension control, with automatic rewinding for continuous coating operations.
Continuously Adjustable Speed：Coating speed adjustable from 0.2 to 1.5 m/min, adapting to different material rheology and process requirements.
Economical Small-Batch Sampling：Compact and precise design allows sampling with small amounts of material, greatly reducing material consumption and costs in R&D.

Technical Specifications

FAQ
Q: What materials is this machine mainly used for?
A: It is primarily used for coating trials of cataplasm, cataplasm paste, and hydrogel materials, and can also be used for sampling similar medical patch products.
Q: Can the coating thickness be adjusted? What is the accuracy?
A: Yes. The coating thickness is adjustable from 0.5 mm to 3.50 mm via a gap mechanism, with both scale and digital display. The gap display accuracy is 0.001 mm.
Q: Can the machine complete lamination at the same time?
A: Yes. It can laminate the substrate with an anti-adhesive layer during coating. With the optional die-cutting function, specimens can be cut to the required size.
Q: What is the coating speed? Is it adjustable?
A: The coating speed is 0.2 to 1.5 m/min and is continuously adjustable to suit different materials and processes.
Q: Can high-viscosity materials be coated evenly?
A: Yes. The inclined feeding and dual-roller squeeze coating method conforms to production processes and achieves satisfactory coating even with high-viscosity materials.
Q: Can I run a trial with a small amount of material?
A: Yes. The compact and precise design allows sampling with small amounts of material, making it ideal for R&D.
